3M EMI Absorbers

3M™ Electro-Magnetic Induction (EMI) Absorbers are flexible composite materials with specialized magnetic particles and a non-conductive PSA to absorb EMI. These absorbers feature high permeability and magnetic loss that help reduce EMI/RFI noise and improve signal integrity that could interfere with a system’s operations. The EMI absorbers are cost-effective and help increase the signal-to-noise ratio. These EMI absorbers help protect nearby electronic devices and components by absorbing EMI across multiple frequency bands. The 3M (TM) EMI/RFI absorbing solutions provide 3M(TM) EMI Absorbers and 3M(TM) Magnetic Isolators (ferrite sheets). For lower frequencies (<1 MHz), 3M™ Magnetic Shielding Materials can interact and influence EM fields to help protect sensitive electronic components and circuitry. Typical applications include computer systems, frames of mechanical bodies, and military equipment.


  • Supplied on a removable liner
  • Non-conductive acrylic adhesive
  • Flexible soft metal flake filler-loaded polymer resin
  • Absorbing capabilities up to 6GHz with targeted permeability

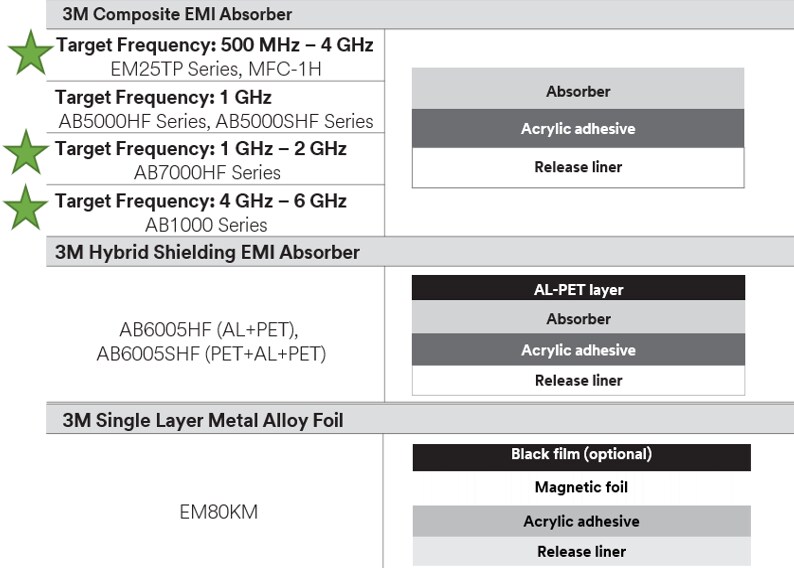

  • Absorbing performance is thickness dependent (ex. 100MHz to 4GHz for EM25TP)
  • Helps improve antenna performance and reduce EMI interference within a device
  • Multiple thickness options for diverse applications
  • Supplied on a removable liner for easy handling
  • PSA layer
  • Halogen-free
